Dongfeng brand Mining Dump Truck 60-70 tons

Product Categories
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.
Contact Now

Dongfeng brand Mining Dump Truck 60-70 tons

Brand Name : Dongfeng

Model Number : DFL1250A8

Place of Origin : China

MOQ : 1 unit

Price : USD90000-USD100000/unit

Payment Terms : T/T

Supply Ability : 80 units per month

Delivery Time : 30 working days

Packaging Details : in nude

dimension : 8680×3200x3750 mm

wheelbase : 3560+1520 mm

tire : 12R22.5

emission : Euro 3

Contact Now

Dongfeng Mining Dump Truck 6*4

Truck Model CT870 CT890
Driving Mode 6×4 6×4
Curb Weight(kg) 25200 27000
Rate Weight(kg) 45000 53000
G.V.W(kg) 70000 80000
Overall Dimension(mm) Length 8680 8850
Width 3150,3200 3350
Height 3750 3800
Min Clearance(mm) 333 350
Min Turning Diameter(m) 11.5 12
Max Gradeability (％) 36 35
App/Dep(°) 27.5/45 27.5/45
Wheel base(mm) 3560+1520 3650+1580
Tread(F/R)(mm) 2550/2236 2731/2550
Engine Model WP12NG380 WD12.375 WD12.420/BF6M1015C
Engine Displacement(L) 11.596 11.596 11.596
Rated Power(kW/PS) 280 276 309
Max Torque/Speed(N.r/min) 1500/(1400-1600) 1500/ 1750/1400-1600
(1300-1500)
Gear Box Model 7DS180 4300ORS 7DS180/45000ORS
Front Alex Loading Weight(Kg) 14000 16000
Front Alex Loading Weight(Kg) 56000 64000
Emission Standard Euro III EroII EroII
Frame(mm) 320*90*(10+8) 320*120*(10+10)
Brake System Double Circuit, Hub Brake Double Circuit, Hub Brake
Electronics System 24V 24V
Tank Volume(L) 450 350 350 350
Tyre Specification 13.00-25 14.00-25
Cargo Dimension (mm) 5600 5600
Width 2850,2900,3000 3100,3200
1500,1600/1680 1600,1700
Lifting Mode Front Lifting Front Lifting
Max Inclination Angle(°) 48±2 48±2
Driving Wheel Diameter(mm) 635 690
Max Speed(km/h) 60 45
Min Speed(km/h) 2 2
Carriage Lifting Time(s) ≤30 ≤30
Carriage Down Time(s) ≤18 ≤18
Braking Distance(V=30km/h) ≤23.27m ≤23.27m


Product Tags:

construction dump truck



mining tipper trucks


Quality Dongfeng brand Mining Dump Truck 60-70 tons wholesale

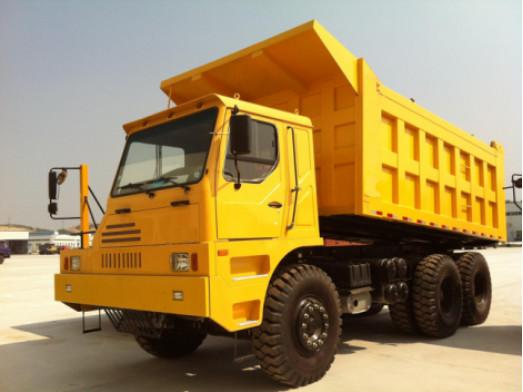

Dongfeng brand Mining Dump Truck 60-70 tons Images
