42m 48m 52m truck-mounted concrete pump 6*4

Product Categories
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.
Contact Now

42m 48m 52m truck-mounted concrete pump 6*4

Brand Name : Dongfeng

Model Number : HDT5281THB-37/4

Place of Origin : China

MOQ : 1 unit

Price : USD210000/UNIT

Payment Terms : T/T

Supply Ability : 50 units per month

Delivery Time : 30 working days

Packaging Details : in nude

Drive mode : LHD RHD

Engine : Cummins

Power : 330 hp

Emission : Euro 3

Wheel base (mm) : 4350+1350

overall dimension : 11310×2500×3520 (99.5M3)

Contact Now

Dongfeng Concrete Pump Truck

42m 48m 52m truck-mounted concrete pump 6*4

Chassis Chassis Dongfeng
Emission Standards Euro IV
Engine Yuchai
Engine power / speed 330p/2000rpm
Wheelbase (MM) 4350+1350
Maximum speed 80km/h
Vehicle approaching / away from the corner 24.6°/15.6°
Tire specifications 11.00R20 16PR
Boom system Maximum vertical height of boom (mm) 42000
Boom horizontal cloth radius (mm) 38150
Fabric depth (mm) 29400
The angle of rotation of each arm 90/180/180/240/180
First arm length (mm) 8750
Second arm length (mm) 7000
Third arm length (mm) 6700
Fourth arm length (mm) 7700
Fifth arm length (mm) 8000
Turret rotation angle ±360°
Leg open way X
Front and rear legs longitudinal distance (mm) 7450
Front leg distance (mm) 7300
After the legs across the distance (mm) 7400
Arm folding method RZ Type
Electrical control system SANY electrical system, China
Hydraulic system Hydraulic system type Open
System work pressure 31.5Mpa
Main hydraulic pump brand and model A11VO190
Transfer box brand Germany
Boom multi-valve brand Harvey
Arm balance valve China or Italy
Boom pump Jinda
Gear double pump American Parker
Main cylinder China
Hydraulic tank volume (L) 680
Hydraulic oil cooling method Air-cooled
Pumping system Concrete distribution valve form S Valve
Maximum concrete outlet pressure High pressure / low pressure 14;8
Maximum theoretical pumping volume 130m³/h
Theoretical pumping times 25Times / min
Feed cylinder inner diameter / stroke 230/1900
Maximum feeding height (mm) 1450
Hopper volume (m³) 0.55
Pumpable concrete slump 160-220
Allow maximum aggregate size (mm) 40
Lubrication method Focus on lubrication
size & weight Total vehicle length (mm) 10800
Total vehicle width (mm) 2490
Total vehicle height (mm) 3850
Vehicle quality about (kg) 25500



Product Tags:

refrigerated box truck



milk tanker truck


Quality 42m 48m 52m truck-mounted concrete pump 6*4 wholesale

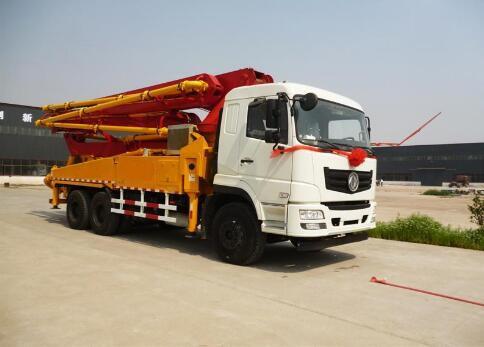

42m 48m 52m truck-mounted concrete pump 6*4 Images
